Description

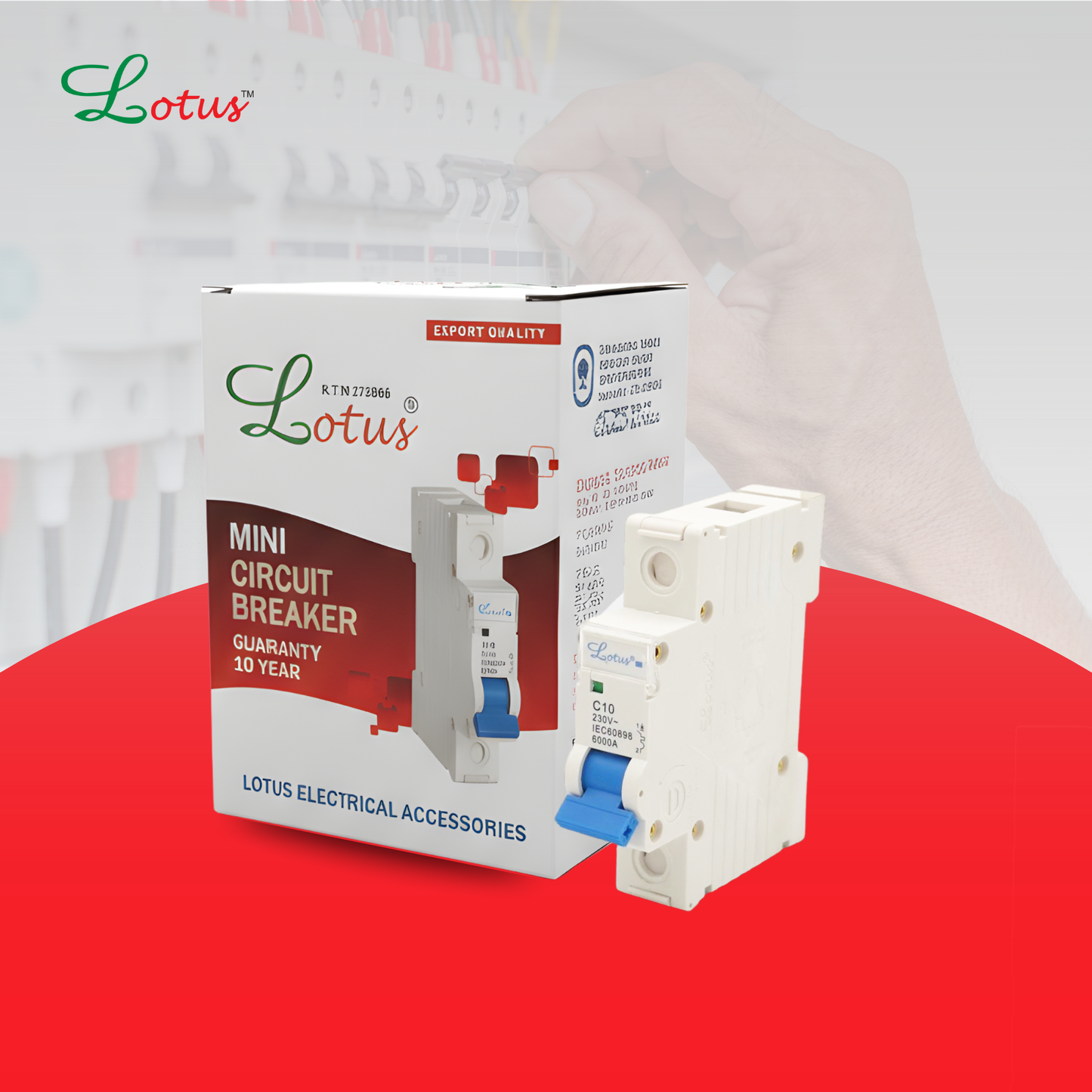

The Lotus Single Pole Miniature Circuit Breaker (MCB) is the essential safeguard for your electrical circuits, appliances, and wiring. Designed to automatically trip and interrupt current flow during an overload or short circuit, it provides reliable protection for both residential and light commercial installations. Choose the required ampere rating (from 6A to 63A) to match the current demand of your specific circuit, ensuring maximum safety and compliance with international standards.
Key Features:

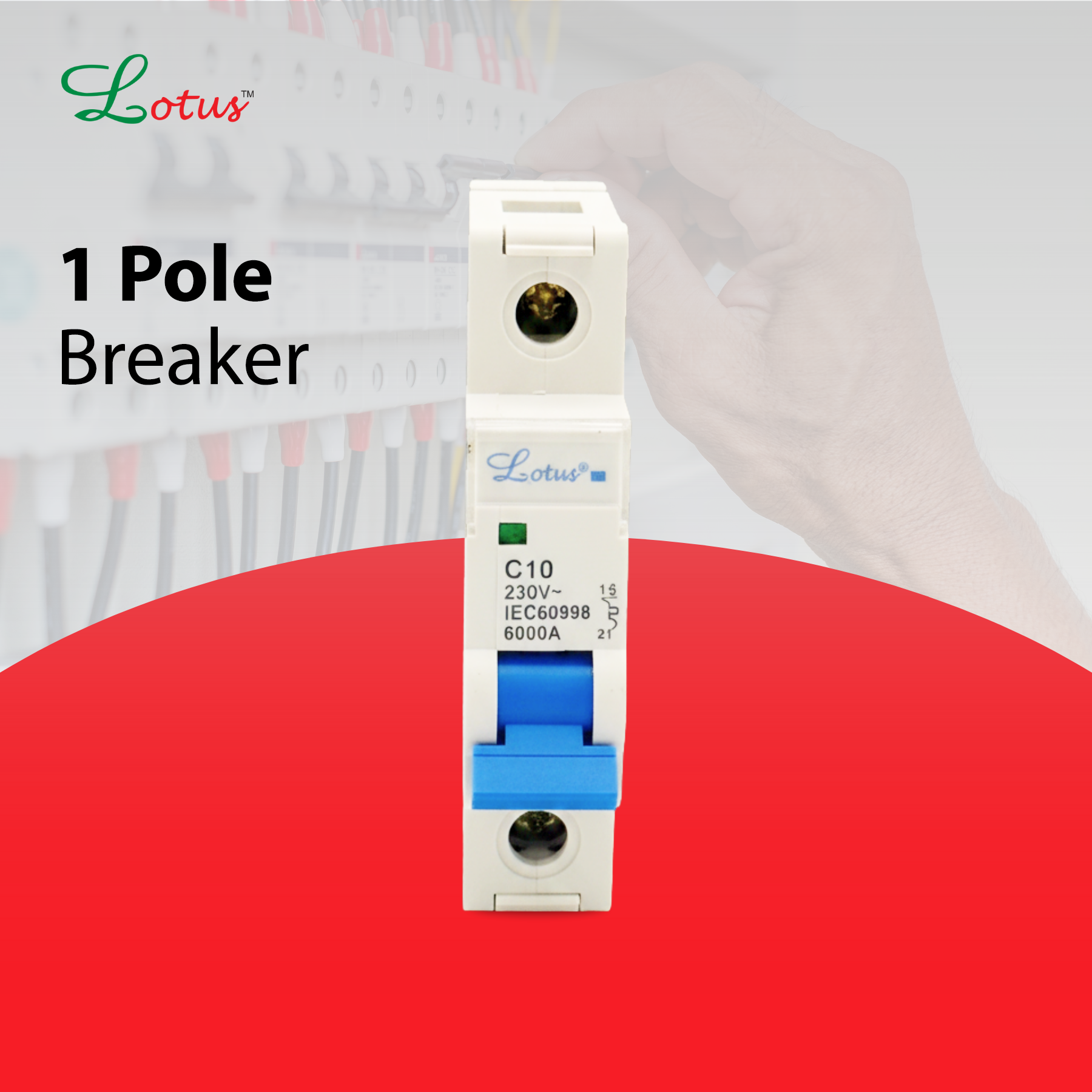

- Single Pole Protection: Designed for single-phase circuit protection (Live wire only).
- High Breaking Capacity: 6000A short-circuit breaking capacity, ensuring safety during high fault currents.
- Wide Range of Ratings: Available in all common ratings: 6A, 10A, 16A, 20A, 32A, and 63A.
- Reliable Tripping Mechanism: Quick and accurate response to prevent damage from overloads and short circuits.
- Compliance: Meets international safety standard IEC60998.
- Easy Installation: Standard DIN rail mounting for quick and secure fitting in distribution boxes.
- Voltage: Rated for 230V AC.
Key Specifications for Variations:
| Variation Name | Ampere Rating (A) | Suitable For (General Use) |
| 6A | 6A | Lighting circuits, ceiling fans |
| 10A | 10A | Lighting circuits, general purpose sockets |
| 16A | 16A | Standard wall sockets, AC 1 Ton |
| 20A | 20A | Heavy-duty sockets, larger AC units |
| 32A | 32A | Main sub-circuit protection, water heaters |
| 63A | 63A | Main circuit protection/incomer |
